25 series V-Type  guide rail series products belong to light-load guide rails, which have various shapes such as circular guide rails, arc guide rails, linear guide rails, etc, service life.

Surface hardness of the Guideway surface:HRC55-58

Designed weight:< 30 kg

Theoretical weight:<50 kg

Surface plane accuracy*:±0.01 mm

*When the size is larger, there is the possibility of deformation, and this accuracy is related to the accuracy of the guideway mounting planeduring use.

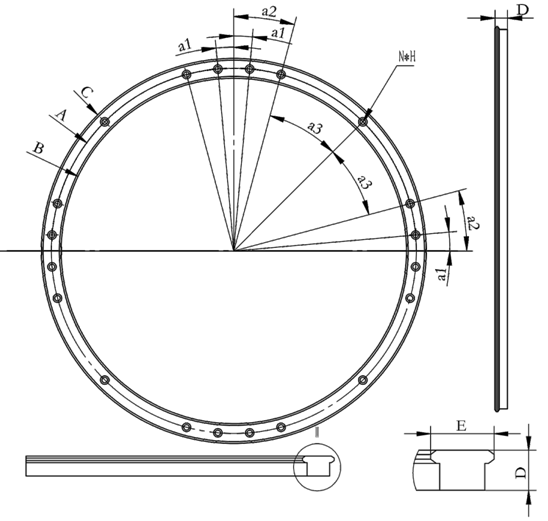

Note: The whole circular arc guide rail can be cut into arc guide rails of different radians, which should be combined with wheels or straight rails alone or to form a closed-loop or open-loop circular guide rail system. The above is the conventional standard ruler arc guide rail, in which D255~D600 For conventional warehouse products, other ruler diameters can be customized according to customer needs.If there is a demand for section, there is a fixed rule for opening. Please call for details.
