  • 16 station rectangular horizontal inner and outer double rail annular guide rail conveyor model

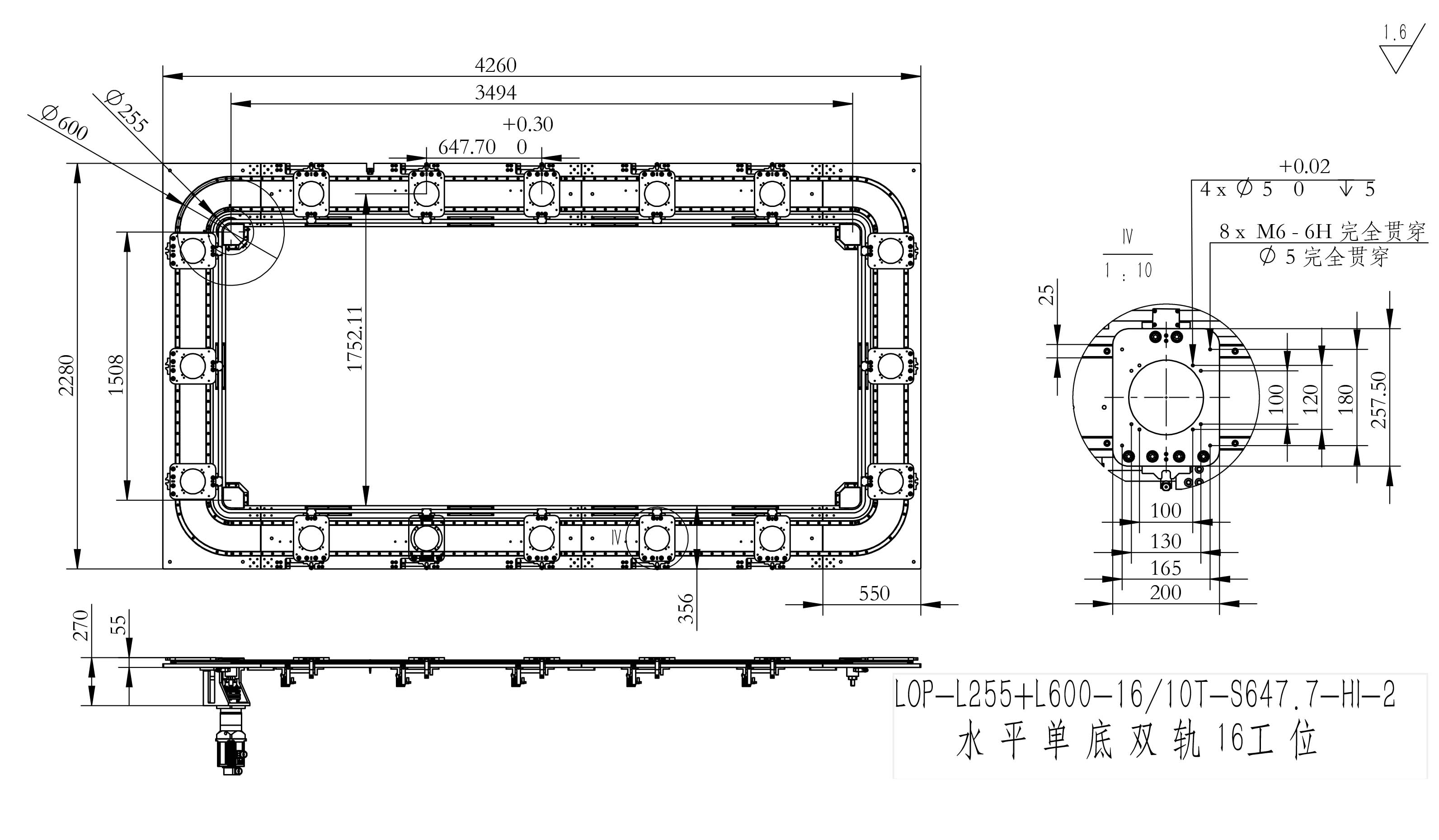

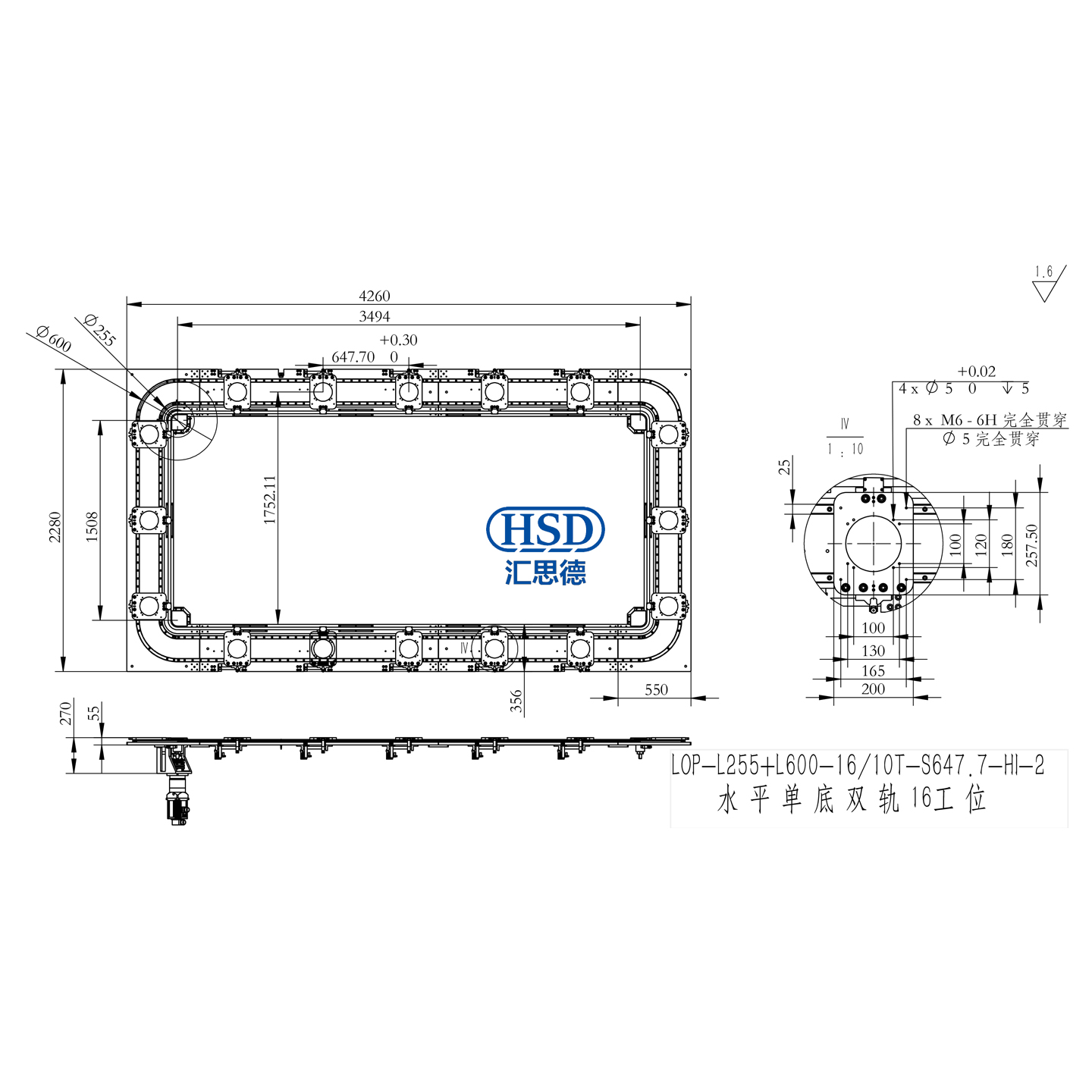

  • 16 station inner and outer double rail conveyor model parameters

  • 16 station rectangular horizontal inner and outer double rail annular guide rail conveyor model

  • 16 station rectangular horizontal inner and outer double rail annular guide rail conveyor model

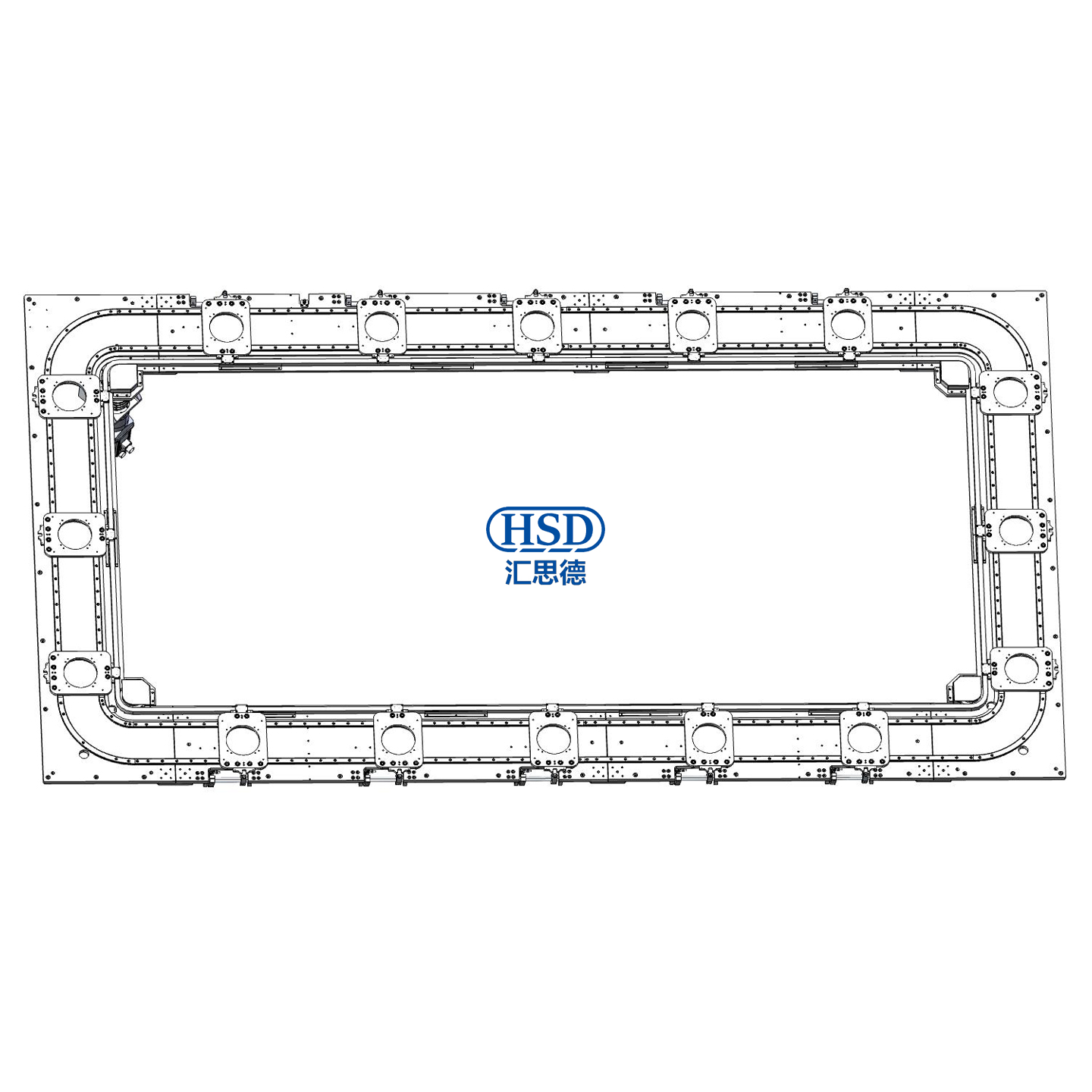

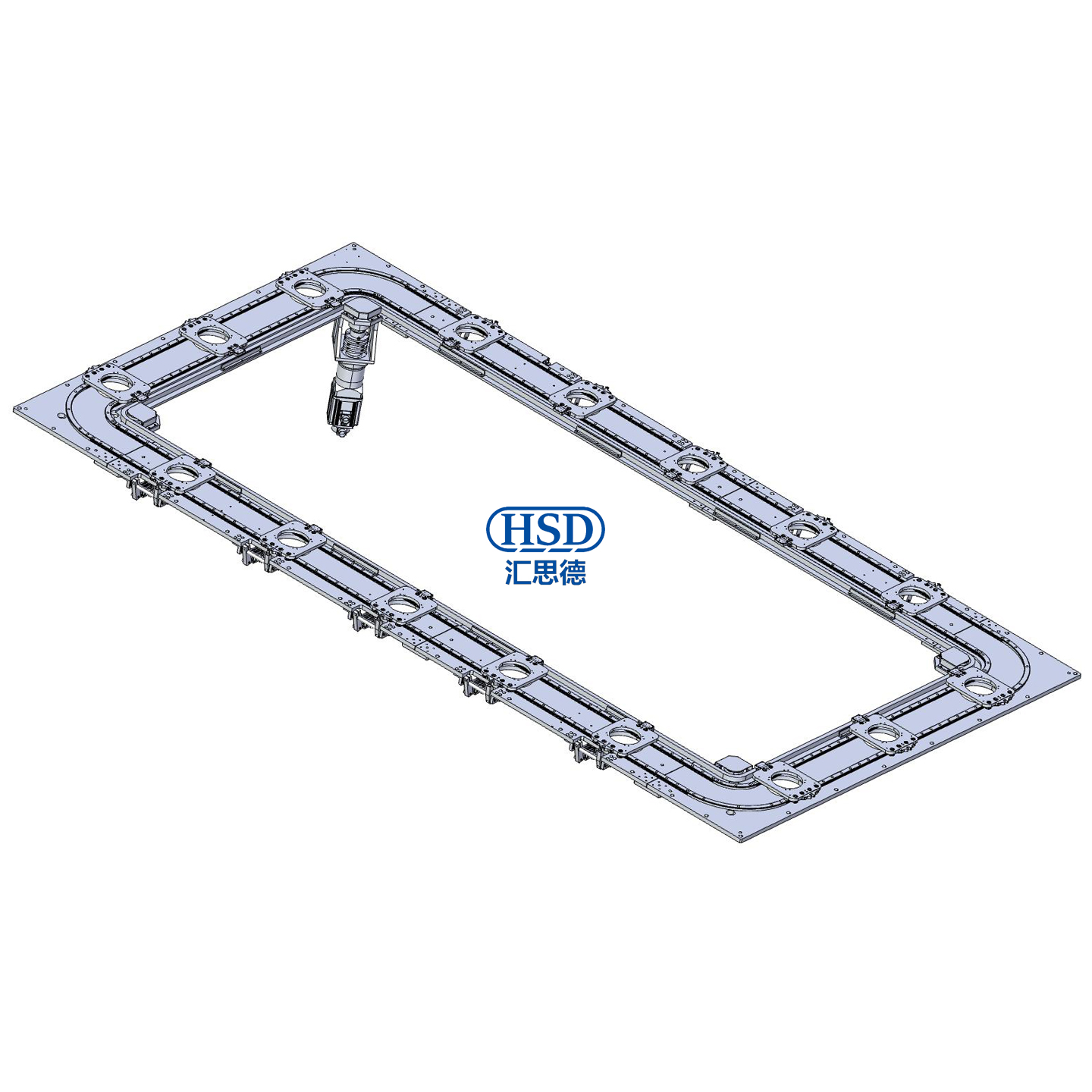

16 station rectangular horizontal inner and outer double rail annular guide rail conveyor model
Conveyor configuration:Rectangle
Structure:Base Plate Base
Power transmission:Chain
Guide Rail series:25 Series
Arc Diameter:255mm
Installation:Horizontal
Applicable Load:Medium Load
Brand:HSD
Model library classification:Horizontal Double-track Annular Guide Rail Conveyor
Basic parameters:16 station inner and outer double rail conveyor model

Model download:16 station inner and outer double rail conveyor model
Hotline

(86)18948294956 (86)18928325808

Online

Product Model Library

News Center

News Center
Detail Introduction

Customized horizontal and vertical dual-track circular guide rail conveyor, rectangular circular rotary conveying, 25mm cross-section V-shaped guide rail, 16 stations with 10 positions each, station spacing 647.7mm, inner arc diameter 255mm, outer arc diameter 600mm, 12A chain drive, 2000W servo motor, repeat positioning accuracy ±0.1mm, horizontal and vertical dual-track circular guide rail conveying system per station load 30-50 kg, base plate and base structure dual-track circular guide rail circular line solution 3D model.
